BSA 1407 D eSmart

Compact Concrete Pump with 74 kW Diesel Engine and 72 Cubic Meters per Hour Output

The Putzmeister BSA 1407 D is a reliable stationary concrete pump ideal for medium- sized construction sites. It is compact, lightweight and easy to transport on the construction site due to its high ground clearance.

Equipped with an open hydraulic system and powered by a 74 kW diesel engine, it has a vertical reach of 100 meters and a horizontal reach of 300 meters.

It is designed for concreting work with a maximum capacity of up to 72 cubic meters per hour and a maximum pressure up to 106 bar.

Key Features

  • Operator can monitor real time operating status of the machine
  • Machine can be fully operational in case of a failure thanks to reliable fault management
  • Easy access to all machine components for convenient cleaning and maintenance
  • Fewer components and therefore lower service costs
  • S transfer tube designed to withstand difficult concrete mixers and deliver continuous flow of concrete
  • More power transmission provided by closed circuit, free flow-hydraulics
  • Minimal noise during optimized pumping process
  • Emergency switch stops the entire operations of the machine

Technical Details

General Information

  • Output (rod side)
    94.17 yd³/hr
  • Output (piston side)
    62.78 yd³/hr
  • Delivery Pressure (rod side)
    1029.77 psi
  • Delivery Pressure (piston side)
    1537.4 psi
  • Strokes (rod side)
    27
  • Strokes (piston side)
    18
  • Engine Power
    99.24 hp
  • Material Cylinder Diameter-Stroke Length
    7.87/55.12 "
  • Outlet Diameter
    5.9 "
  • Length x Width x Height
    21.65 x 68.5 x 81.89 "
  • Weight
    8377.57 lbs
  • Trailer Type
    F8

Brochures & Spec Sheets

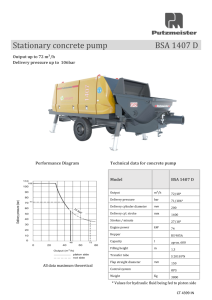

BSA 1407 D eSmart Data Sheet 2021 IN.pdf
pdf | 1 MB
BSA eSmart Range Brochure IN
pdf | 956 KB
