39Z-Meter

The Jack-Of-All-Trades

Putzmeister’s 39Z-Meter Truck-Mounted Concrete Boom Pump comes equipped with a newly designed four-section Multi-Z boom that can either be permanent or detachable.

It’s a jack-of-all-trades that can achieve typical and high-rise pumping applications as well as frost law and special weight considerations. We’ve listened to our user feedback and put it into action. Rather than purchasing three separate pieces of equipment, customers will benefit from the value of a single, customizable machine.

The 39Z-Meter comes with the latest Ergonic®3.0 Control System.

Key Features

Easy replacement of the radio remote control thanks to radiomatic(R) iLOG Technology
Lithium ion battery for a working time of up to 17 hours
Reinforced with 2,500 lbs (1.134 kg) of steel and featuring rod-side outputs of 180 yards³/hr (138 m³/hr), the optional 13 HPD pump cell is designed to withstand extreme conditions as it performs in high- pressure and long-distance pumping applications

General Information

Number of sections

4
Boom Style

Z-Fold
Vertical Reach

125'8"
Horizontal Reach

110'3"
Reach from Front of Truck

11'9"
Reach Depth

78'9"
Unfolding Height

29'6"
Rotation

365°
End Hose Length max.

10'
End hose - Diameter

5 "
Delivery Line (DN + Pressure)

5/1233 "/psi
Outrigger spread L-R - front hydraulically extended out & down

19'8"
Outrigger spread L-R - rear hydraulically swing out & extend down

24'7"
Outrigger load: Front-Rear

43,838/47,210 lbf
Length x Width x Height

40'11 x 8'2" x 12'9"
Front Axle Weight

18,831 lbs
Rear Axle Weight

37,564 lbs
Total Weight (approx.)

56,395 lbs
Wheelbase

231 "

Configuration

Material Cylinder Diameter-Stroke Length

9"/83"
Output (piston side)

123 yd³/hr
Delivery Pressure (piston side)

1885 psi
Strokes (piston side)

18
Output (rod side)

180 yd³/hr
Delivery Pressure (rod side)

1233 psi
Strokes (rod side)

26

Material Cylinder Diameter-Stroke Length

10/83 "
Output (piston side)

222 yd³/hr
Delivery Pressure (piston side)

1233 psi
Strokes (piston side)

28

Material Cylinder Diameter-Stroke Length

9
Output (rod side)

209 yd³/hr
Output (piston side)

141 yd³/hr
Delivery Pressure (rod side)

1233 psi
Strokes (rod side)

31

Material Cylinder Diameter-Stroke Length

9"/83"
Output (piston side)

97 yd³/hr
Delivery Pressure (piston side)

1885 psi
Strokes (piston side)

14
Output (rod side)

144 yd³/hr
Delivery Pressure (rod side)

1233 psi
Strokes (rod side)

21

Brochures & Spec Sheets

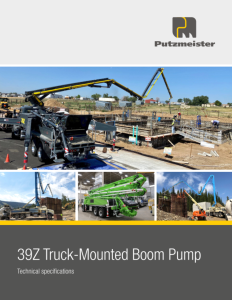

39Z-M Brochure US

pdf | 11 MB

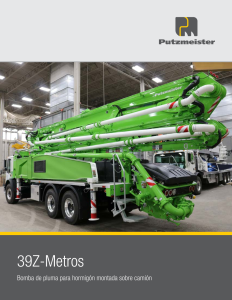

39Z Catálogo ES
