63RZ-Meter

Low Speed Steer Assist System Increases Maneuverability

Who says you can’t have reach and excellent maneuverability? When you need a big machine with excellent maneuverability, the 63RZ is your choice. The versatile five-section RZ-Fold boom has 203 feet 9 inches of vertical reach on a chassis with rear steering.

Putzmeister's Low Speed Steer Assist is the first of its kind – three computer controlled steering axles in the front and two in the rear provide a very tight turning radius of only 58 feet 6 inches.

The 63RZ-Meter comes with the latest Ergonic®3.0 Control System and the new intelligent low stroke pump cell (option).

Key Features

Ideal for Major construction sites
Increased fuel efficiency
Low ceiling height
Reduced component wear
Free flow hydraulic system
Innovative RFID safety switch in the hopper disables the machine when the grate is opened

General Information

Number of sections

5
Boom Style

RZ-Folding
Vertical Reach

62.10 m
Horizontal Reach

58.10 m
Reach from Front of Truck

53.40 m
Reach Depth

46.30 m
Unfolding Height

23.00 m
Rotation

365° degree
End Hose Length max.

3 m
End hose - Diameter

125 mm
Delivery Line (DN + Pressure)

125/5/85 mm/bar
Outrigger spread: L-R-front swing out, telescope & extend down

11.69 m
Outrigger spread L-R - rear hydraulically swing out & extend down

12.83 m
Length x Width x Height

16.56 x 2.50 x 3.89 mm
Front Axle Weight

25137 kg
Rear Axle Weight

33703 kg
Total Weight (approx.)

58841 kg

Material Cylinder Diameter-Stroke Length

250/2100 mm
Output (piston side)

170 m³/hr
Delivery Pressure (piston side)

85 bar
Strokes (piston side)

28

Material Cylinder Diameter-Stroke Length

230/2100 mm
Output (rod side)

160 m³/hr
Output (piston side)

108 m³/hr
Delivery Pressure (rod side)

85 bar
Strokes (rod side)

31

Brochures & Spec Sheets

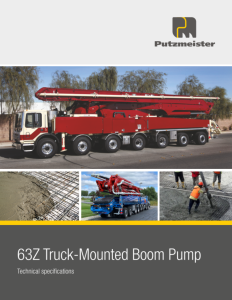

63RZ-5 Brochure US
