VSP 60 HP

Vehicle Mounted Thom-Katt® Pump

Now added to our Vehicle-Series product line with the VSP 60HP Vehicle Mounted Thom-Katt® Pump. It doesn’t require a CDL to operate, which means more versatility for your staff. It delivers the same high-level performance and output as the reliable Thom-Katt® TK 60HP on a rugged flatbed-style chassis. The VSP 60HP is well suited for pumping grout, block fill, and shotcrete applications due to its ø6” (150mm) concrete cylinders.

Key Features

Large side decks with folding side panels
Large side-mounted aluminum toolbox
150 gal (568L) water tank
Fully enclosed weatherproof control panel with color display of pump information

General Information

Output

43 m³/hr
Delivery Pressure

100 bar
Strokes

44
Material Cylinder Diameter-Stroke Length

150/1000 mm
S-Valve

S1512
Hopper

270 l
Hydraulic Tank Capacity

170 l
Water Tank

570 l
Engine

6.7 L Cummins Diesel
Engine Power

242 kW
Diesel Tank

170 l
Wheelbase

5180 mm
Total Weight (approx.)

8845 kg
Front Axle Weight

3288 kg
Rear Axle Weight

6123 kg
Length x Width x Height

8800 x 2450 x 2040 mm
Filling Height

1175 mm

Brochures & Spec Sheets

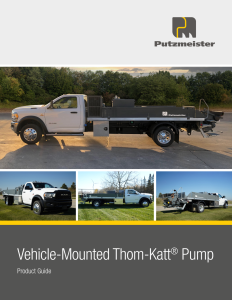

VSP 60HP Brochure US

pdf | 3 MB
