BSF 38
Better than ever Before
Putzmeister's most popular pump is only getting better. Thanks to meaningful feedback from customers across the globe, the best-selling BSF 38-5 features a number of functional improvements. Stability is increased with a more robust, calm pedestal, and the Ergonic® 2.0 technology is optimized for better control and monitoring. All in all, the pump continues to prove its worth as one of the most efficient and cost-effective units on the job site.
Características principales
- Robust components with high wear resistance
- Many maintenance-free and standard components
- Quick and easy maintenance access
- Bolt-on parts such as the pipe bracket
- Fewer movements increase service life. Thanks to auto lubrication points, the operator can remain safely on the ground — the BSF 38-5 lubricates the first boom cylinder and the slewing bearing and hub independently. This is not just faster and more cost-effective; it also increases the component's service life.
Información general
-
Brazos5
-
Tipo de PlegadoZ-Fold
-
Alcance en Altura37.5 m
-
Alcance Longitudinal bruto32.8 m
-
Alcance Longitudinal neto30.30 m
-
Alcance en Profundidad25.30 m
-
Altura de Desplegado7.40 m
-
Rotación365 grado
-
Longitud máx. manguera final3 m
-
Manguera final, Diámetro125 mm
-
Tubería de Transporte - PresiónDN125/85 mm/bar
-
Apoyo Delante-detrás6.0/8.1 m
-

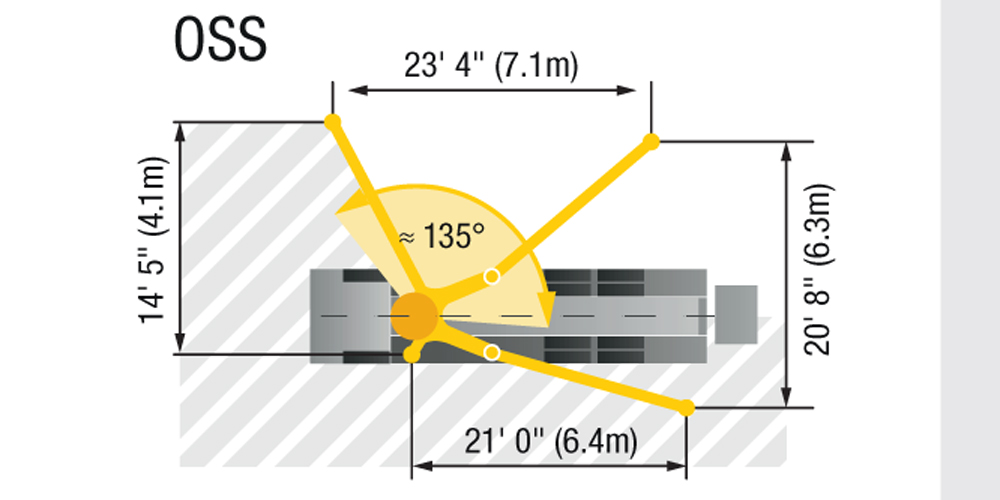

Apoyo OSS Delante-detrás4.1/6.3 m
-
Largo x Ancho x Alto12.45 x 2.5 x 3.90 m
-
Peso del eje delantero8564 kg
-
Peso del Eje Posterior17028 kg
-
Peso total aproximado25592 kg
-
Distancia entre ejes5867 mm
Configuración
-
Cilindro de Transporte Diámetro-Carrera250/2100 mm
-
Rendimiento (lado del fondo)182 m³/hr
-
Presión (lado del fondo)85 bar
-
Carreras (lado del fondo)29
-
Tanque de agua700 l
-
Tamaño máx. de grano63 mm
-
Cilindro de Transporte Diámetro-Carrera230/2100 mm
-
Rendimiento (lado del vástago)160 m³/hr
-
Rendimiento (lado del fondo)108 m³/hr
-
Presión (lado del vástago)85 bar
-
Carreras (lado del vástago)31
