MXR 32-4

The Innovative Quick Release System with Hinge Technology Enables a Quick and Simple Assembly of the Placing Boom

What sets this stationary boom apart, from others in its category, is its broad and diverse applications. It functions as effectively in the construction of power stations, caverns, liquid gas tanks and bridges as well as high-rise building construction sites. The fact that is lightweight makes it easy to transport across sites. These stationary booms are ideally suited for integration in climbing formwork, the autonomous through-climbing of floors, as well as free-standing installations. You are guaranteed secure operation of the boom thanks to the compact slewing head without stationary parts. The use of low-maintenance standard components keeps service costs down.

It is suitable for the RS 850 tubular column system from Putzmeister.

Características principales

  • New quick release system with hinge technology for quick and simple assembly
  • Large working platform that allows easy accessibility and space for assembly
  • Environment friendly due to the reduced use of oil
  • Flexible Z folding with the Putzmeister delivery line with DN 125/5.5"
  • Increased horizontal reach/depth of reach, especially due to the -10° inclination angle of the first arm

Detalles técnicos

Información general

  • Brazos
    4
  • Estilo de la Pluma
    Z
  • Alcance Horizontal
    32,1 m
  • Profundidad de Alcance
    28,4 m
  • Rotación
    540 grado
  • Manguera final — largo
    4 m
  • Tamaño de la Tubería (DI), Terminales métricos-Présion
    DN 125
  • Boom Weight
    5000 kg
  • Pesos Pedestal
    2500 kg

Configuración

  • Largo
    9 m
  • Ancho
    1 m
  • Peso
    4490 kg
  • Largo
    6 m
  • Ancho
    1 m
  • Peso
    2786 kg
  • Largo
    3 m
  • Ancho
    1 m
  • Peso
    1631 kg
  • Largo
    10,5 m
  • Ancho
    1 m
  • Peso
    4767 kg
  • Largo
    1.5 m
  • Ancho
    1 m
  • Peso
    1291 kg

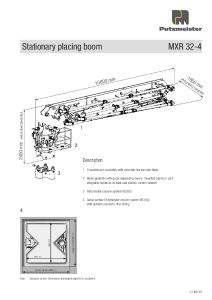

Prospectos y hojas técnicas
