BSF67-5

Longest boom for large construction sites

The new large boom from Putzmeister with a vertical reach of 217.2' (66.2m) and the large 19 iLS core pump with a delivery rate of 248 yd³/hr (190 m³/hr) (theor. max.). Including Full Flex support, the absolutely flexible support option in conjunction with iSC (intelligent Setup Control). Approved in Canada and the US states of California, Washington and Florida

When folded, the placing boom does not extend beyond the cab. 200 kg boom tip load, ideal for a split 10' (3m) end hose with EQV end hose squeeze valve. Lower total weight than the previous M63-5 thanks to a completely new design.

In the US and in Canada, the M67-5 is available on a 7 axle MACK chassis, whereas in Canada it is a 8-axle MACK chassis. Equipped with the innovative Ergonic 3 control system.

General Information

  • Supportwidth (lengthways)
    ' "

Key Features

  • Greater flexibility – a true 5-arm placing boom, easy and fast unfoldable
  • A 200 kg boom tip load enables a legal operation of standard boom tip equipment
  • Sturdy bolted pipehangers of the latest generation guarantees less failure and better parts availablilty
  • Enhanced safety and precision when moving the boom thanks to the iBC soft vibration damping system (optional)
  • The Putzmeister intelligent Support Control (iSC), in combination with completely flexible telescopic slewing legs and slewing legs in support position leads to unrivaled maximum of reach and flexibility
  • A real 0-support is possible
  • The Support width in front has been reduced to 11.5 m only
  • No cab overhinge and no extra low cabin needed
  • Standard axle configuration in front, therefore no expensive modification necessary
  • A super smooth reducer pipe leads to smooth pumping, even very difficult-to-pump mixes
  • Support controls optimized – levers lowered and better protected keypad
  • Ergonomically perfect HMI

Configuration

  • Material Cylinder Diameter-Stroke Length
    10/83 "
  • Output (piston side)
    254 yd³/hr
  • Delivery Pressure (piston side)
    1233 psi
  • Strokes (piston side)
    31
  • Material Cylinder Diameter-Stroke Length
    10/83 "
  • Output (piston side)
    222 yd³/hr
  • Delivery Pressure (piston side)
    1233 psi
  • Strokes (piston side)
    28

Documents

Spec Sheets

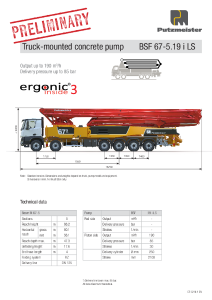

M67-5 Data Sheet EN

M67-5 Data Sheet EN

pdf | 1 MB

M67-5 Data Sheet EN

pdf | 1 MB

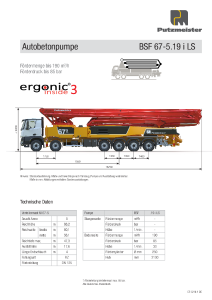

M67-5 Typenblatt DE
