BSC 2113 H D4

Crawler concrete pump for the most demanding drill-hole fillings

The BSC crawler concrete pump BSC 2113 H D4 combines the latest Putzmeister technology with the autonomy of powerful crawlers, making them ideal for completing the bore pile filling process in civil works and construction projects for large bore piles.

This pump has the highest performance in its category, helping in the worldwide record of the deepest bore pile filling with 50 m of profundity.

Key Features

Convenient and safe, thanks to water deposit, air compressor, accessories and no need for external support
Remote control makes it easy to regulate both transport and pumping parameters
For concrete up to 32 mm aggregate size

General Information

Output (rod side)

170 yd³/hr
Output (piston side)

116 yd³/hr
Delivery Pressure (rod side)

1625 psi
Delivery Pressure (piston side)

1885 psi
Strokes (rod side)

26
Strokes (piston side)

18
Engine Power

Deutz 6 cylinder, 450 hp
Material Cylinder Diameter-Stroke Length

9'/6'11 "
Outlet Diameter

6 "
Length x Width x Height

25'4
Weight

35275 lbs
Chassis

Steel Crawler
Max. Speed

1.55 mph
Diesel Tank

61 gal
Engine Emissions

Stage IV / Tier 4f
Water Pump

5.6 ft³/min
Compressor

30 ft³
Pressured Air Tank

4.2 ft³/h

Brochures & Spec Sheets

BSC 2113 H D4 Data Sheet EN

pdf | 356 KB

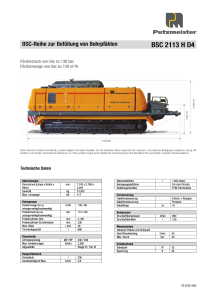

BSC 2113 H D4 Typenblatt DE

pdf | 365 KB

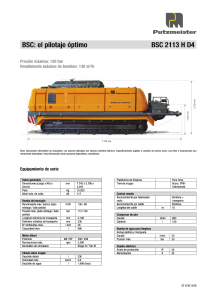

BSC 2113 H D4 Ficha Técnica ES
