M42-5

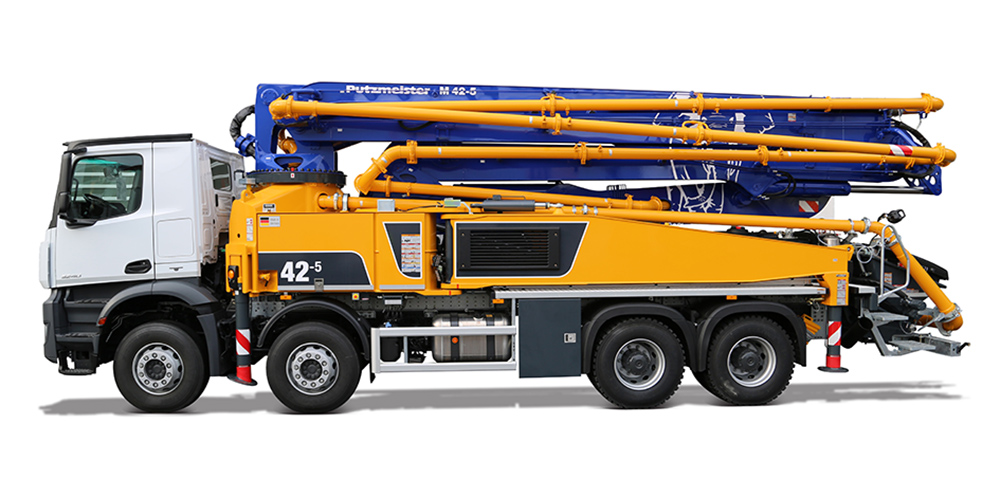

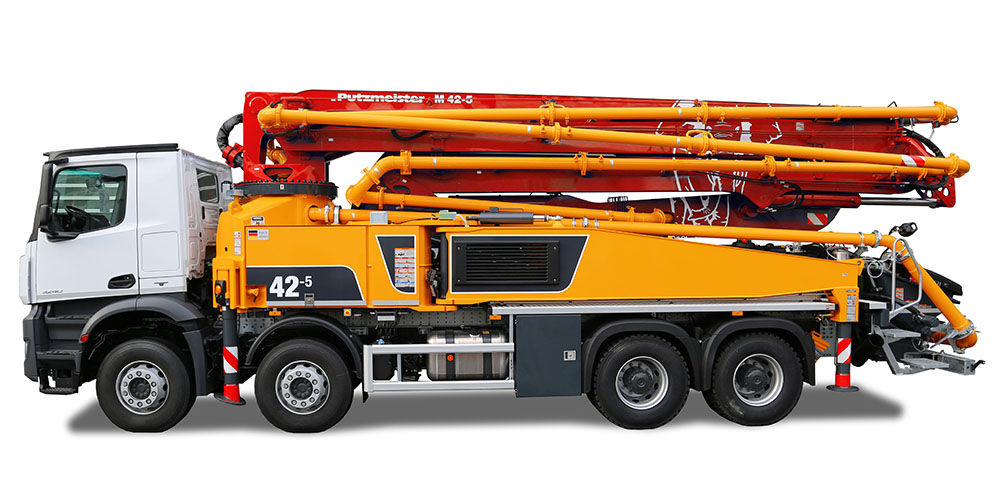

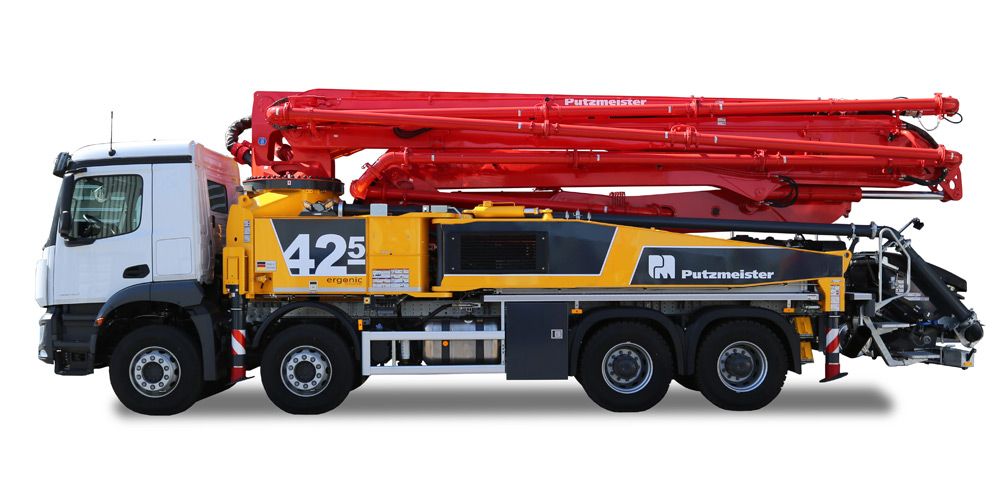

The Next Generation of the M42-5 Truck-Mounted Concrete Pump
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons.
Link to Reach Forecast App for M42-5 with Ergonic3. EU Version
Key Features
- A gross weight of less than 32 t includes sufficient reserves for payload and operating materials
- Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure
- Efficient work through consistently clever ergonomic design
- Even better safety through closer consideration for current standards and guidelines
- Service-friendly as a result of its optimised accessibility and consistent bolted concept
- Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %)
General Information
-

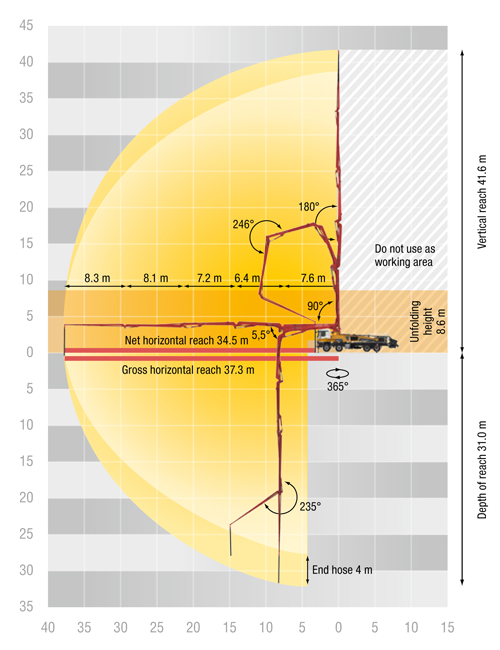

Unfolding Height' "
-
Rotationdeg
-
End Hose Length max.' "
-
Delivery Line (DN + Pressure)"/psi
-

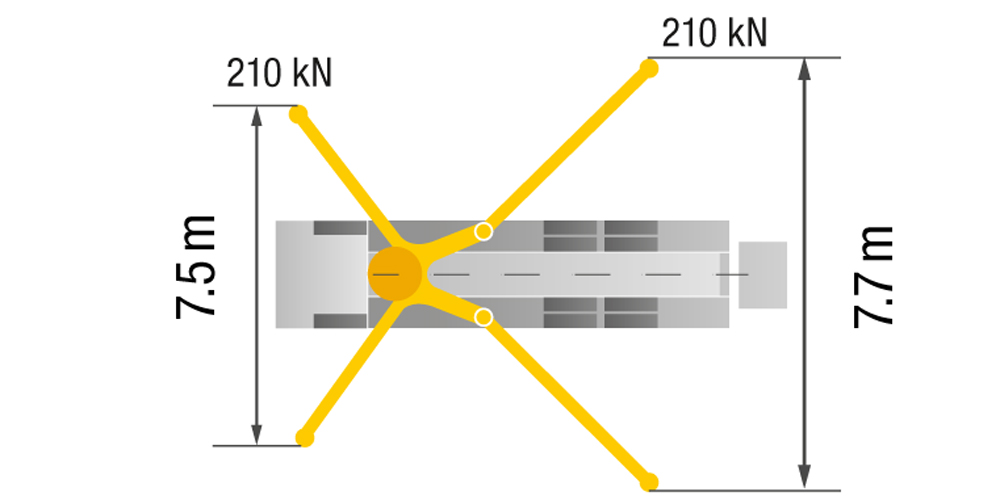

Support width Standard (front-rear)' "
-

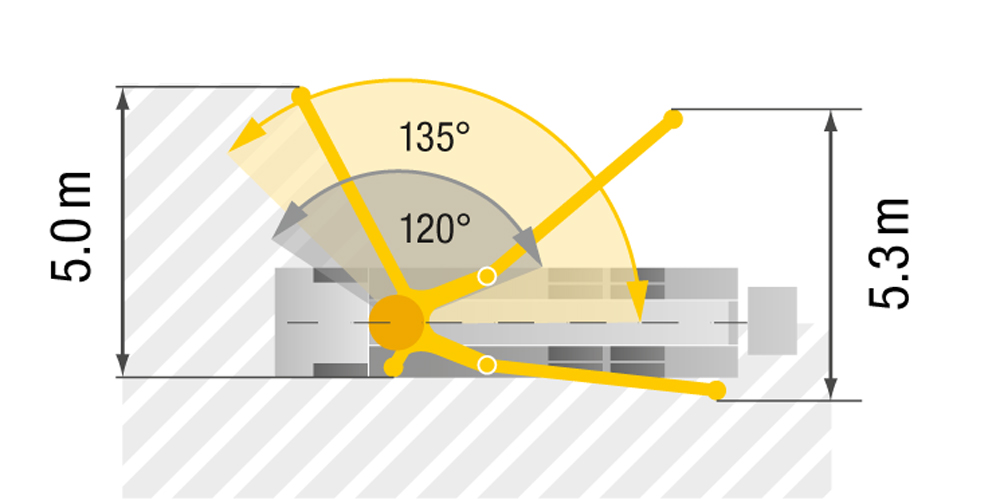

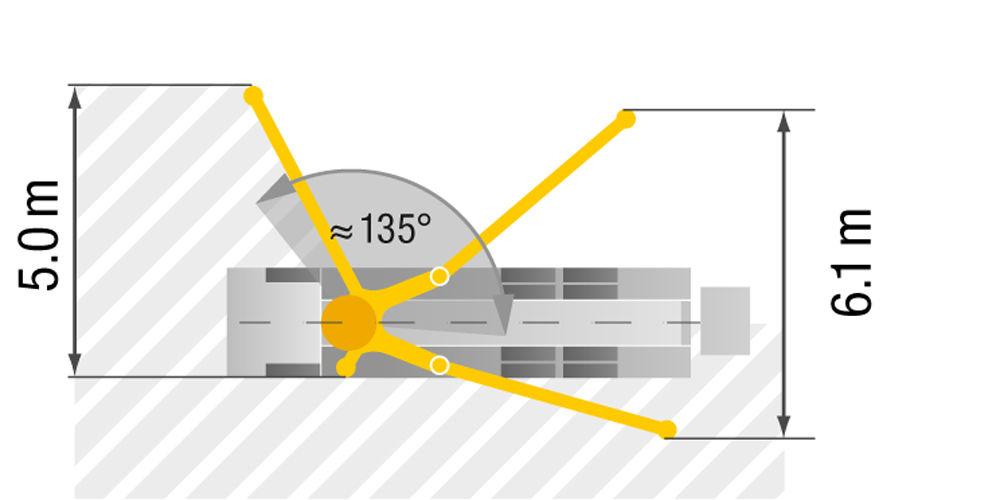

Support width OSS (front-rear)' "
-

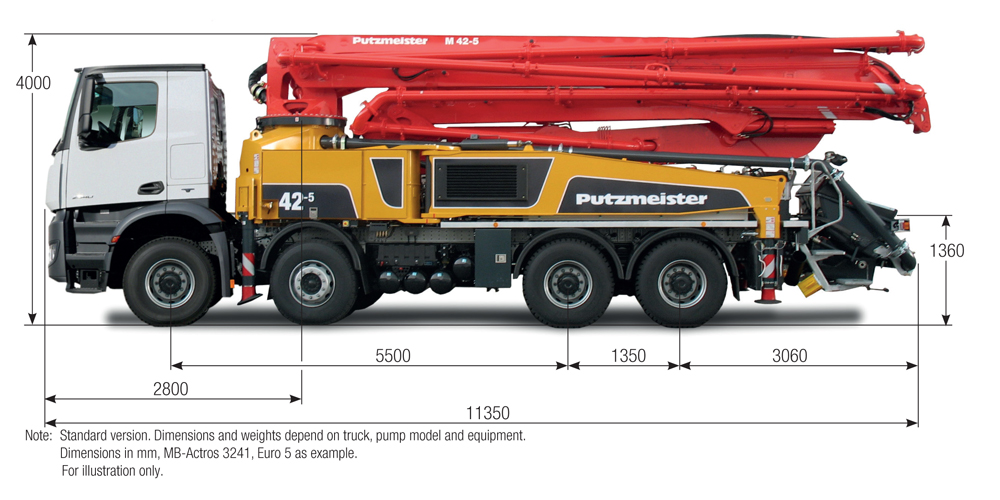

Length x Width x Height' "
-
Total Weight (approx.)lbs
Configuration
-
Material Cylinder Diameter-Stroke Length10/83 "
-
Output (piston side)222 yd³/hr
-
Delivery Pressure (piston side)1233 psi
-
Strokes (piston side)28
-
Material Cylinder Diameter-Stroke Length9
-
Output (rod side)209 yd³/hr
-
Output (piston side)141 yd³/hr
-
Delivery Pressure (rod side)1233 psi
-
Strokes (rod side)31
