M51-5

Flexible 5-Section RZ-Folding Boom, with 160 cbm per h Output

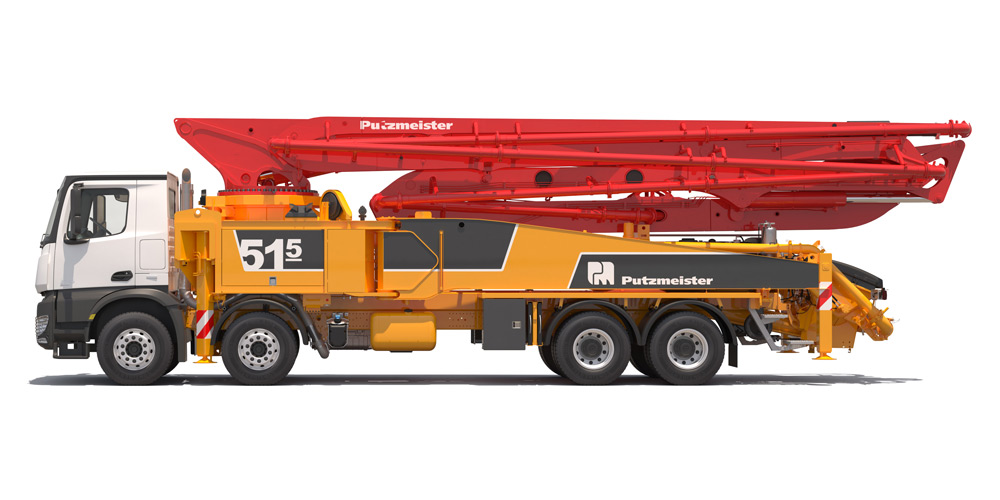

The Putzmeister M51-5 truck-mounted concrete pump is an indispensable machine for concrete plants and concrete truck rental companies. It features improved maneuverability and weight indices for 4 axle chassis. It is ideal for a wide range of construction sites, from large to those with limited space.

Key Features

Flexible 5-section RZ-folding boom
Delivery rate of 160 cubic meters per hour
4 axles for optimum load distribution
TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations

General Information

Number of sections

5
Boom Style

RZ-Folding
Vertical Reach

50.1 m
Horizontal Reach

44.9 m
Reach from Front of Truck

40.3 m
Reach Depth

34.9 m
Unfolding Height

10.2 m
Rotation

365 degree
End Hose Length max.

3 m
Delivery Line (DN + Pressure)

DN125/5.5 / 85 mm/bar
Support width Standard (front-rear)

9.3 / 10.6 m
Support width OSS (front-rear)

5.9 / 7.6 m
Length x Width x Height

13.6 x 2.5 x 4 mm
Total Weight (approx.)

under 460000000 kg

Material Cylinder Diameter-Stroke Length

250/2100 mm
Output (piston side)

160 m³/hr
Delivery Pressure (piston side)

85 bar
Strokes (piston side)

26

Material Cylinder Diameter-Stroke Length

230/2100 mm
Output (rod side)

160 m³/hr
Output (piston side)

108 m³/hr
Delivery Pressure (rod side)

85 bar
Strokes (rod side)

31

Brochures & Spec Sheets

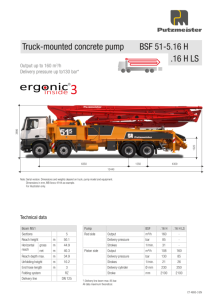

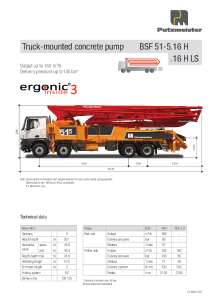

M51-5 Data Sheet EN

pdf | 635 KB

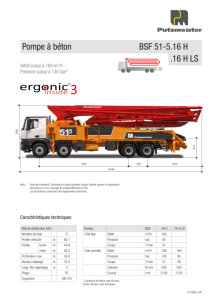

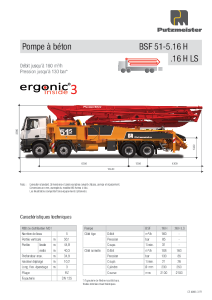

M51-5 Fiche Technique FR

pdf | 635 KB

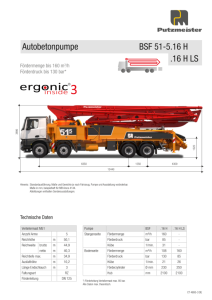

M51-5 Typenblatt DE

pdf | 635 KB
