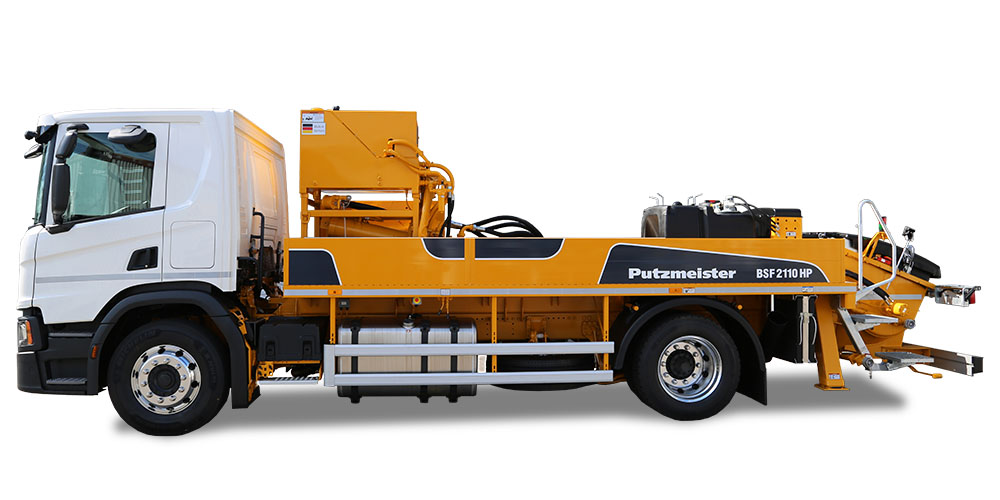

MOLI 2110 HP

The Mobile Pipeline Concrete Pump for High-Pressure Delivery of Concrete

It is a common complaint that stationary concrete pumps often cannot be used cost-efficiently for short pours. MOLI is here to change that. The MOLI is a mobile pipeline concrete pump for high-pressure delivery of concrete and it offers a simple solution. The pump is quickly set up and is ready for operation in next to no time.

When the MOLI has finished the job, the site is available for other work.

Key Features

  • Maximum profitability, as it can be used at several construction sites during the day
  • Powerful concrete pump unit
  • Transports everything required for delivery of concrete
  • Simple operation and easy handling
  • On-board compressor and high-pressure flushing water pump allow easy cleaning of the whole delivery system
  • No time-consuming set-up, no crane required

Configuration

  • Material Cylinder Diameter-Stroke Length
    8'/83
  • Output (piston side)
    90 yd³/hr
  • Delivery Pressure (piston side)
    3191 psi
  • Strokes (piston side)
    18
  • Output (rod side)
    139 yd³/hr
  • Delivery Pressure (rod side)
    2176 psi
  • Strokes (rod side)
    26

Brochures & Spec Sheets

Moli 2110 HP Typenblatt DE
pdf | 179 KB
Moli 2110 HP Data Sheet EN
pdf | 178 KB
BSF Moli Prospekt DE
pdf | 653 KB
BSF Moli Brochure EN
pdf | 649 KB
BSF Moli Catálogo ES
pdf | 652 KB
