BSA 1404 E eSmart

Electric Driven Stationary Trailer Pump

The BSA 1404 E is the all-round machine for average performance ranges and ideal especially for tunnel applications. The machine is equipped with an electric-driven motor, thereby providing smooth operation of the hydraulic system under any load.

Key Features

Operator can monitor real time operating status of the machine
Machine can be fully operational in case of a failure thanks to reliable fault management
Easy access to all machine components for convenient cleaning and maintenance
Fewer components and therefore lower service costs
S transfer tube designed to withstand difficult concrete mixers and deliver continuous flow of concrete
More power transmission provided by closed circuit, free flow-hydraulics
Minimal noise during optimized pumping process
Emergency switch stops the entire operations of the machine

General Information

Output (rod side)

57.54 yd³/hr
Output (piston side)

39.24 yd³/hr
Delivery Pressure (rod side)

826.72 psi
Delivery Pressure (piston side)

1232.82 psi
Strokes (rod side)

23
Strokes (piston side)

16
Engine Power

60.34 hp
Material Cylinder Diameter-Stroke Length

7.87/39.37 "
Outlet Diameter

5.9 "
Length x Width x Height

224.4 x 68.5 x 85.82 "
Weight

7716.18 lbs
Trailer Type

F8

Documents

Brochures

BSA Stationary Concrete Pumps Brochure IN

pdf | 4 MB

BSA Stationary Concrete Pumps Brochure IN

pdf | 4 MB

Spec Sheets

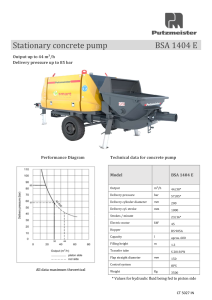

BSA 1404 E eSmart Data Sheet 2021 IN
