BSA 1406 E eSmart

Electric Driven Stationary Trailer Pump

Thanks to its powerful motor pump, the BSA 1406 E eSmart is the ideal solution for tunnel concreting and can be mounted on a rail vehicle when required.

This concrete pump is equipped with an electric-driven motor, thereby providing smooth operation of the hydraulic system under any load.

Key Features

Operator can monitor real time operating status of the machine
Machine can be fully operational in case of a failure thanks to reliable fault management
Easy access to all machine components for convenient cleaning and maintenance
Fewer components and therefore lower service costs
S transfer tube designed to withstand difficult concrete mixers and deliver continuous flow of concrete
More power transmission provided by closed circuit, free flow-hydraulics
Minimal noise during optimized pumping process
Emergency switch stops the entire operations of the machine

General Information

Output (rod side)

74.55 yd³/hr
Output (piston side)

49.7 yd³/hr
Delivery Pressure (rod side)

1029.77 psi
Delivery Pressure (piston side)

1537.4 psi
Strokes (rod side)

21
Strokes (piston side)

14
Engine Power

100.58 hp
Material Cylinder Diameter-Stroke Length

7.87/55.12 "
Outlet Diameter

5.9 "
Length x Width x Height

257.87 x 68.5 x 81.89 ' "
Weight

8377.57 lbs
Trailer Type

F8

Documents

Brochures

BSA eSmart Range Brochure IN

pdf | 956 KB

BSA eSmart Range Brochure IN

pdf | 956 KB

Spec Sheets

BSA 1406 E eSmart

Electric Driven Stationary Trailer Pump

Key Features

General Information

Documents

Brochures

BSA eSmart Range Brochure IN

BSA eSmart Range Brochure IN

Spec Sheets

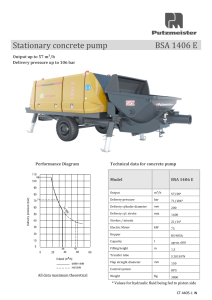

BSA 1406 E OPS Data Sheet 2021 IN.pdf
