Putzmeister Cleaning accessories

A clean delivery line is essential for long-term and fault-free operation. Putzmeister offers high-quality and custom-fit equipment for every requirement. Our sponge balls and wash-out pigs guarantee the optimum and thorough removal of concrete residues in the delivery line.

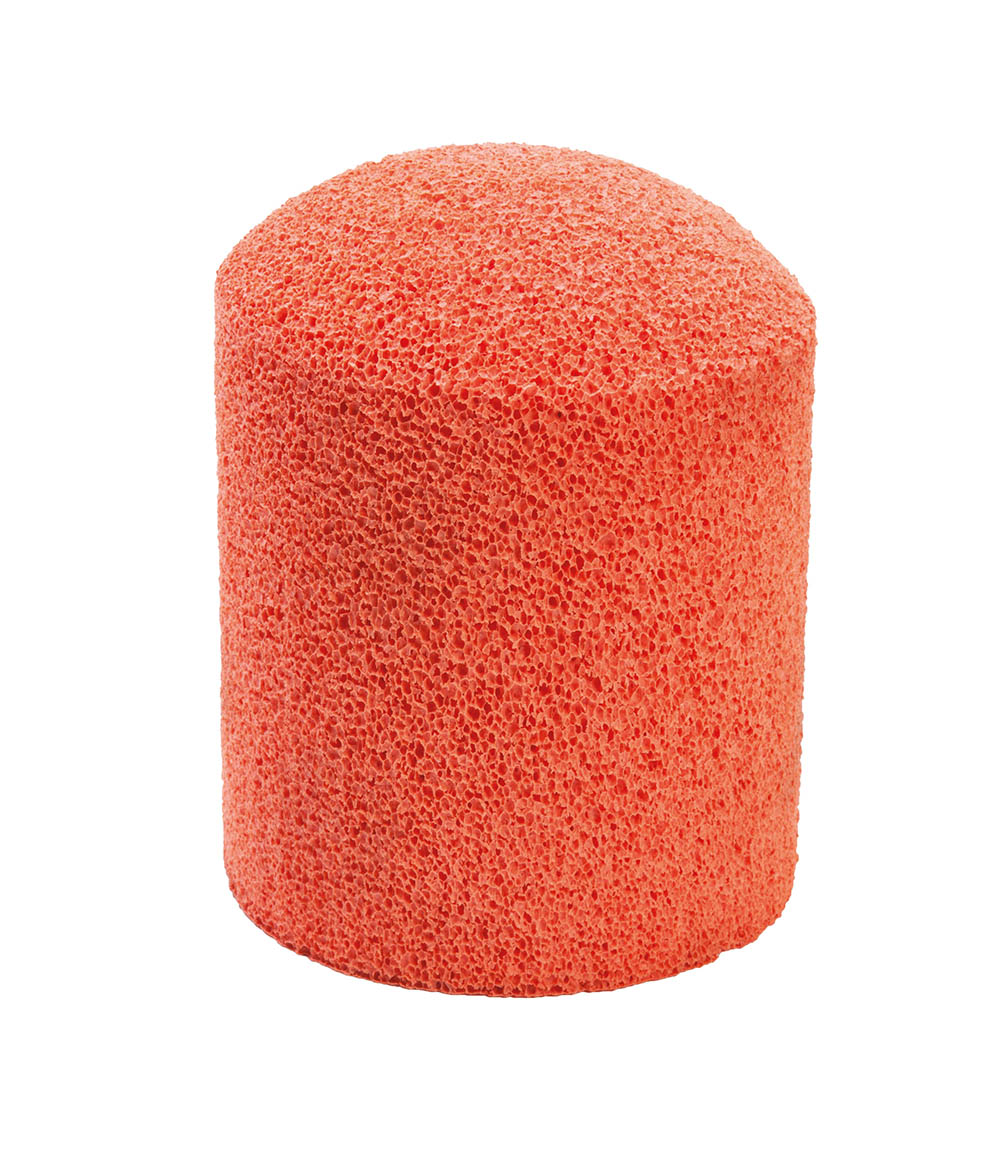

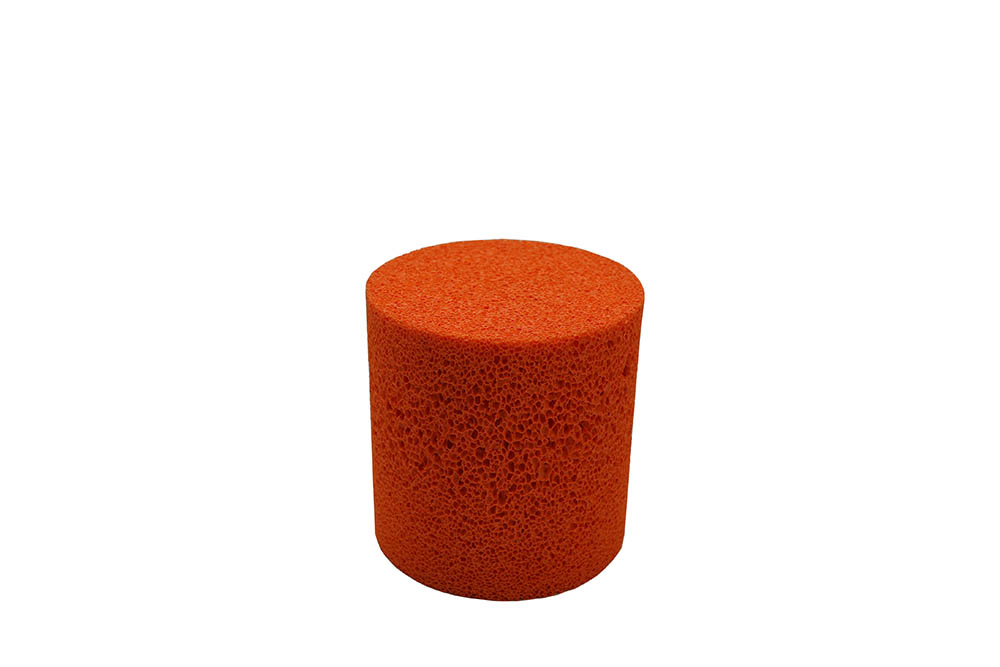

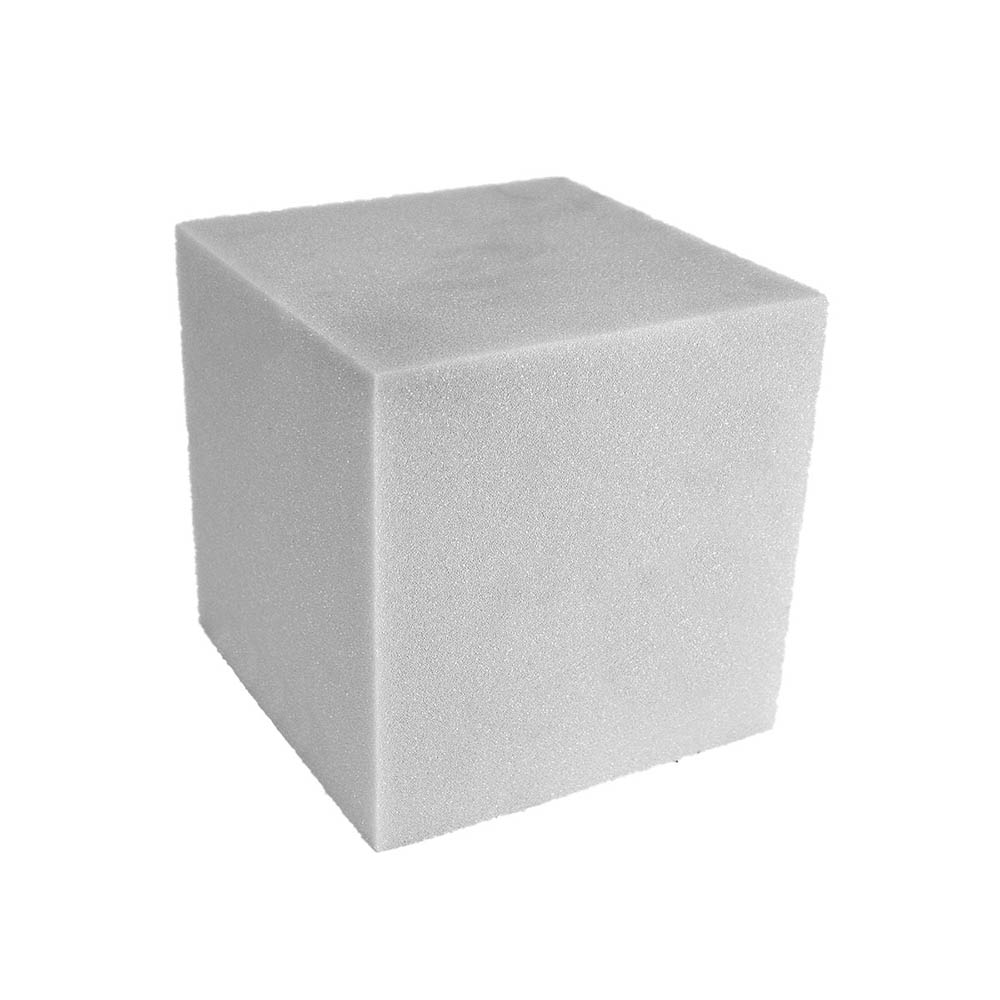

Sponge balls, cubes and cylinders

Putzmeister sponges made from particularly tear-resistant and tough sponge rubber ensure a consistently high quality with repeated use without any loss of cleaning power.

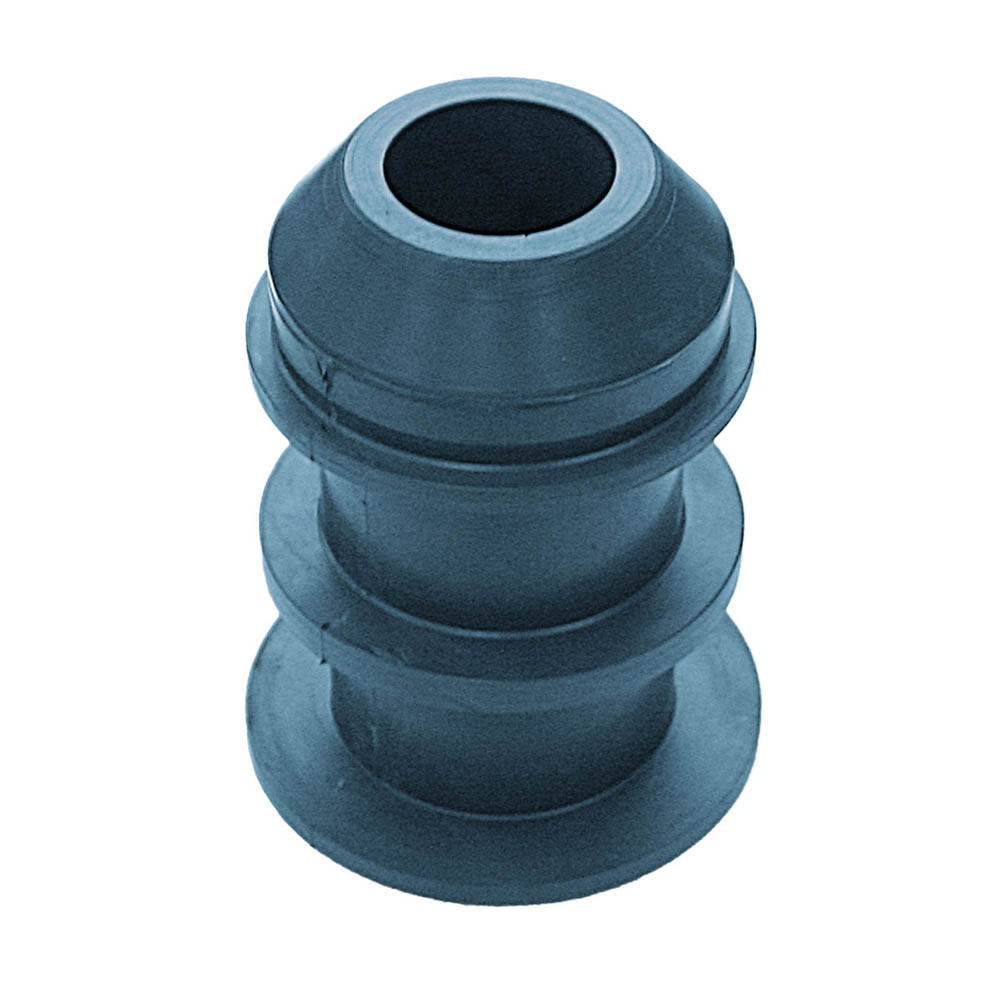

Cleaning pig

Cleaning pigs are more durable and produce better cleaning results. Sponge pigs or a special highly flexible rubber cleaning pig can be used for the boom line.

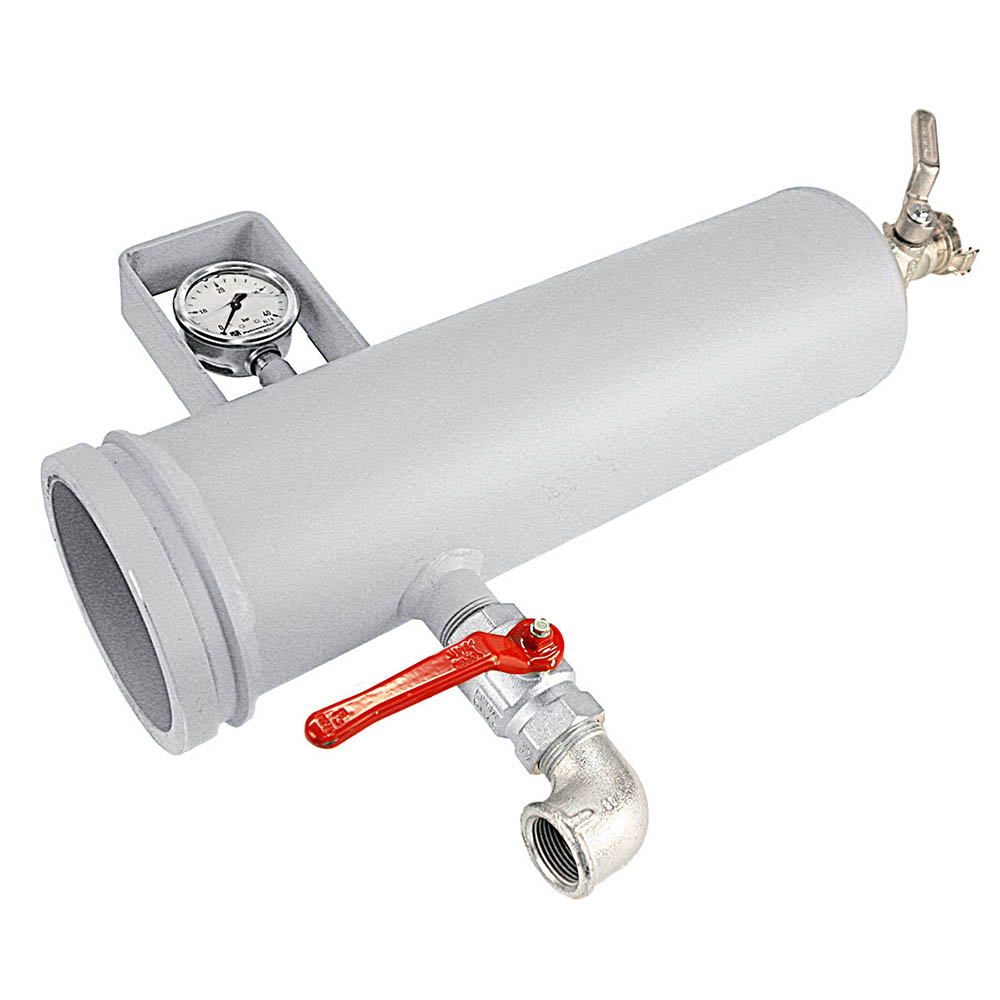

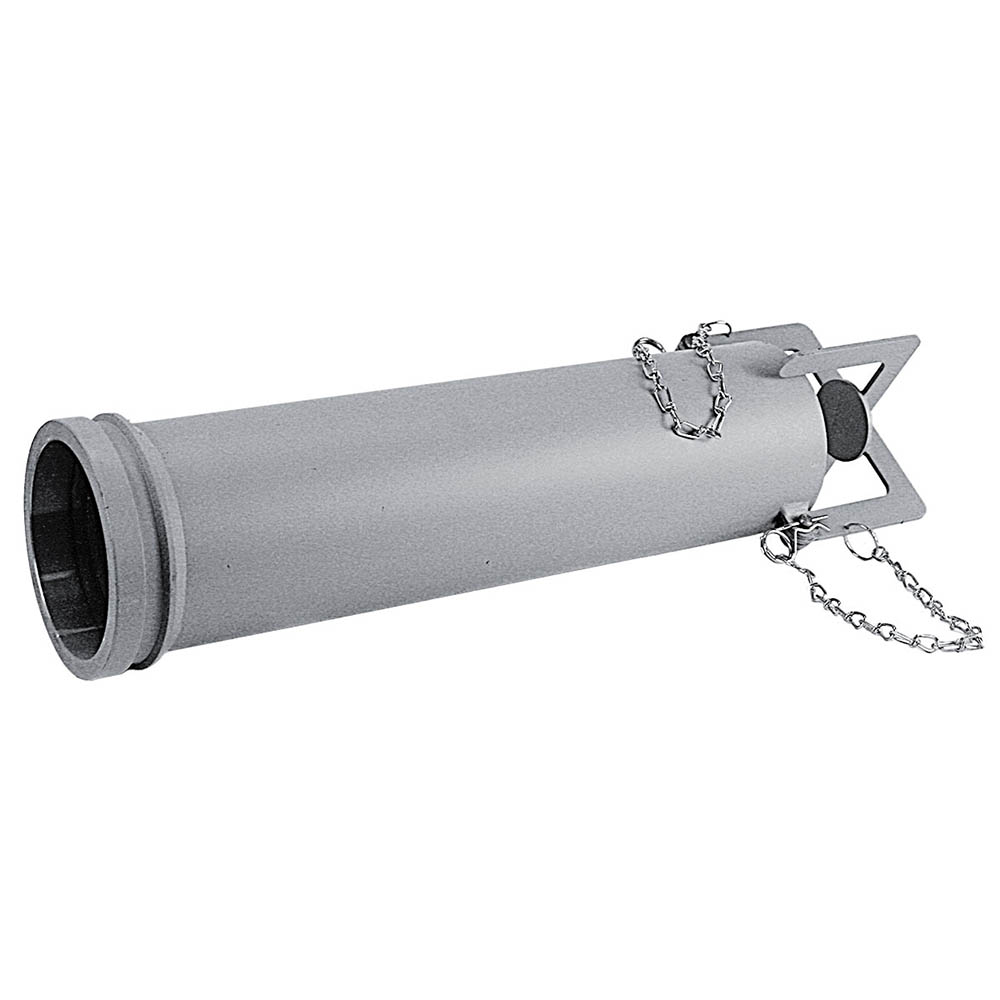

Catching baskets, ports and lids

Putzmeister offers wash-out adaptors and wash-out port lids for safely connecting water or compressed air. Safe cleaning requires the use of catch baskets for collecting sponges and pigs and preventing the uncontrolled escape of concrete residues and water.

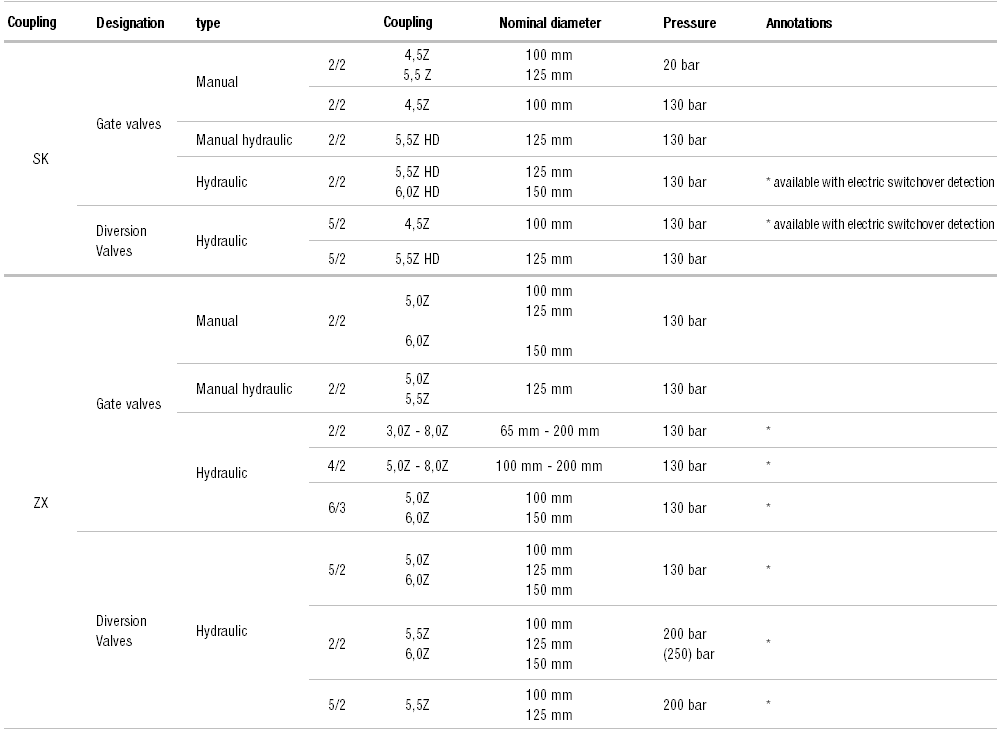

Putzmeister Gate and Diversion Valves

Putzmeister gate valve systems are robust, pressure-resistant and leak-tight. The sealing function is performed by hardened seal rings, which are pressed against the moving, wear-resistant gate valve strut. With the exception of the manual gate valve for max. 20 bar, the housings are sealed with O-rings. Some hydraulic gate valves and diversion valves perform an optional electrical end position detection for more convenient actuation and transmit the gate valve position to the remote control, for example. Other sizes with an operating pressure of up to 250 bar and other shut-off and distribution systems (e.g. S transfer tube and rotor distributor) are available on request.

Gate valves

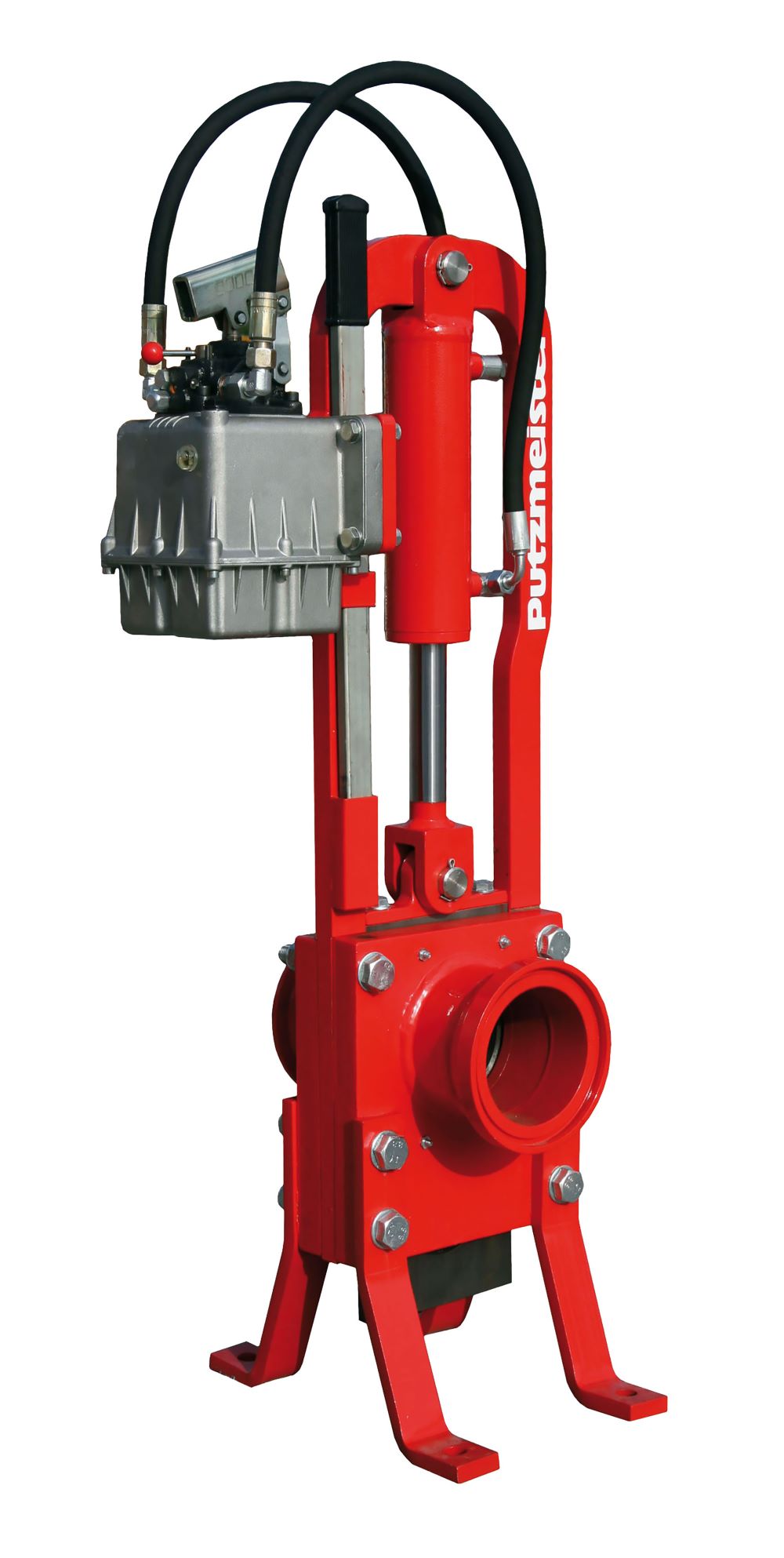

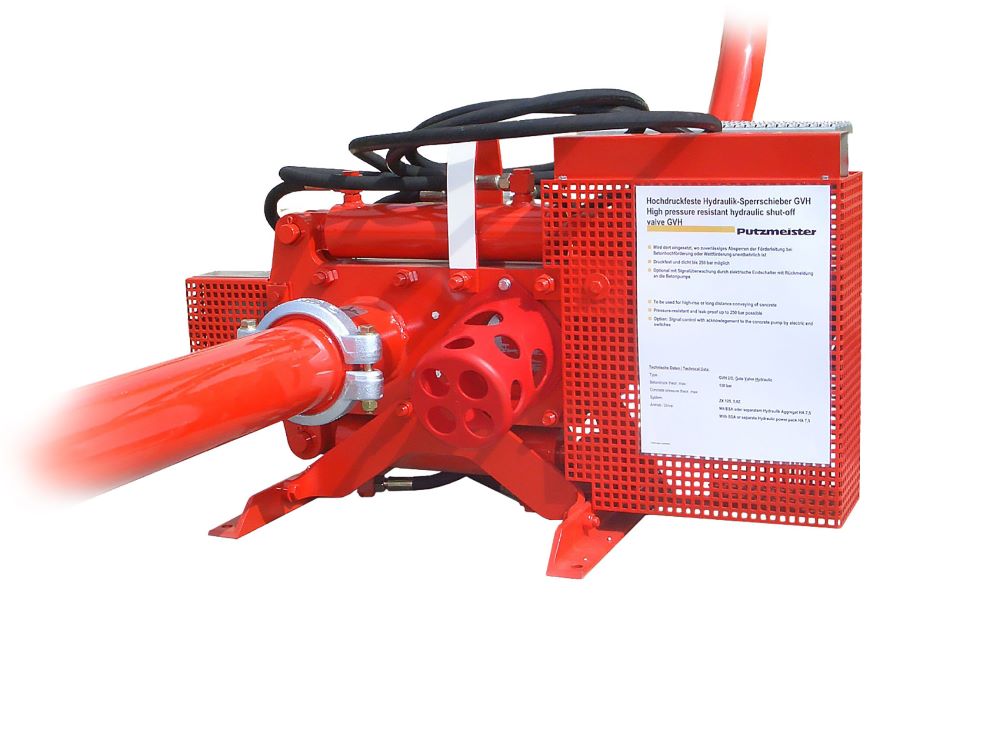

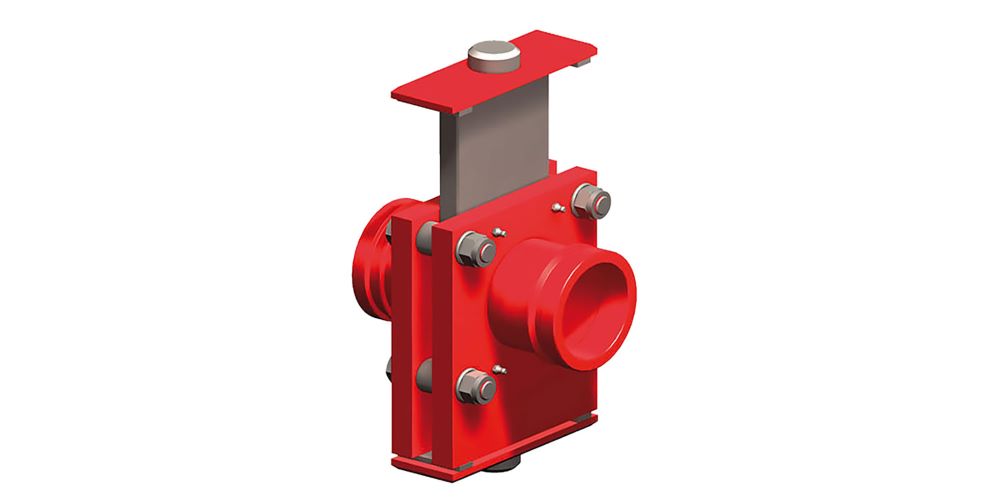

Manual and manual-hydraulic gate valves permanently and tightly block a delivery line without an external power supply, either purely
manually with the application of force or by means of manual actuation with hydraulic support. Hydraulic gate valves are powered by a
trailer concrete pump with S transfer tube or a different hydraulic power pack, for example.

Diversion Valves

Hydraulic diversion valves enable a quick changeover to other lines

Putzmeister Manual rotary distributors

Rotary distributors are a very cost-effective alternative to truck-mounted concrete pumps, stationary booms or delivery lines, when it comes to distributing concrete over a wide range. Alternatively, they are used in combination with placing systems in order to extend their areas of application. They are easy to relocate by crane once concreting of a particular area is finished.

Moreover, their reach of up to 22 m is not noticed until they are set up. They are extremely undemanding in terms of space requirement and weight during transport. However, they are extremely generous in terms of the variety of models available, and boast exceptional flexibility and durability. With all these advantages, rotary distributors are the first choice when other options reach their technical or economic limits.

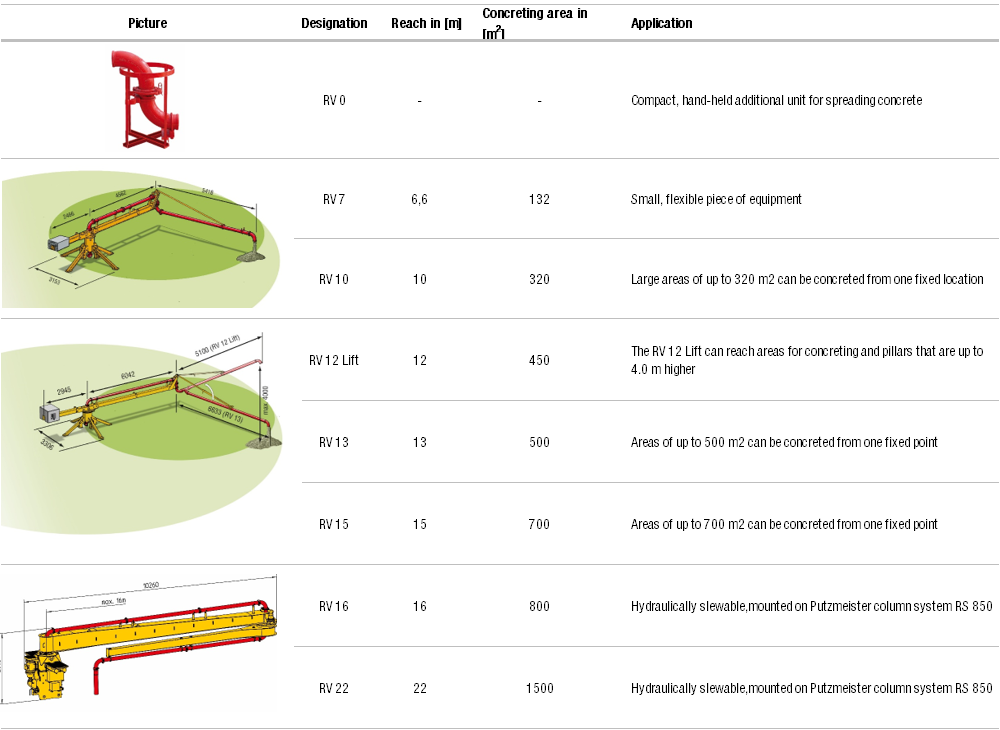

Overview manual rotary distributors

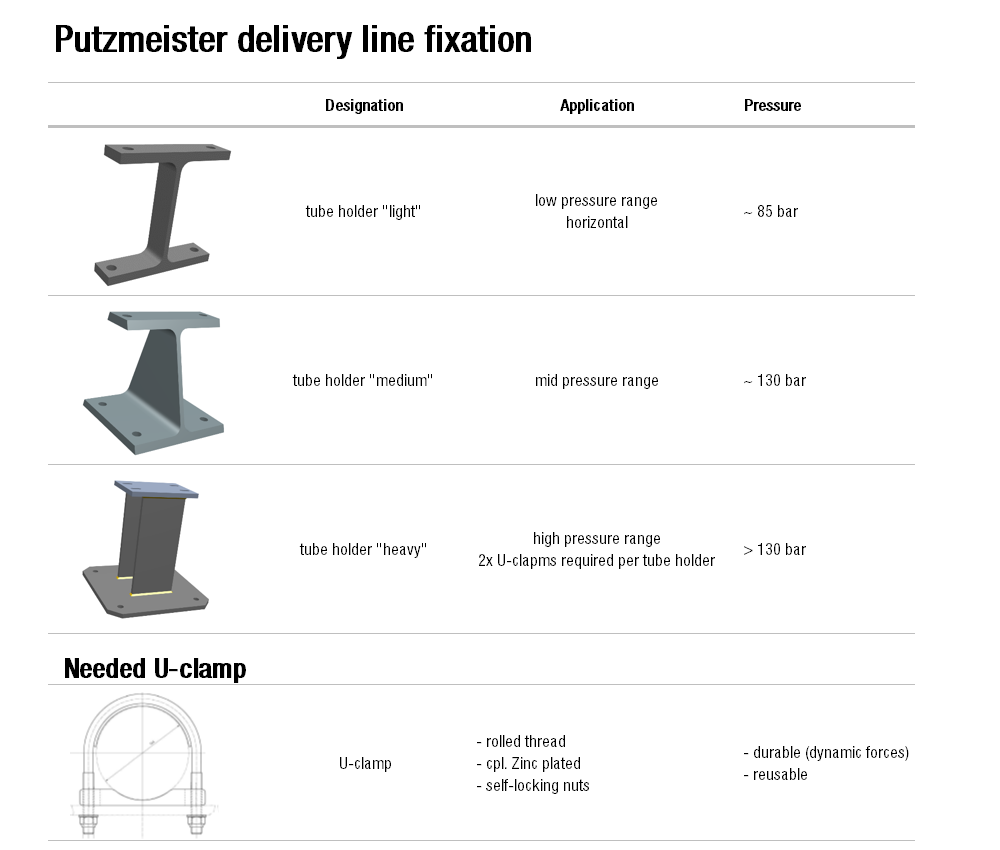

Putzmeister Delivery line fixation

For stationary applications, the delivery lines need a fixation on the floor / on the wall. Therefore U-clamps and tube holders are necessary. Each horizontal pipe should be fixed with one tube holder, for vertical lines we recommend two tube holders per three meter pipe.

Tube Holders are available for different pressure ranges.
