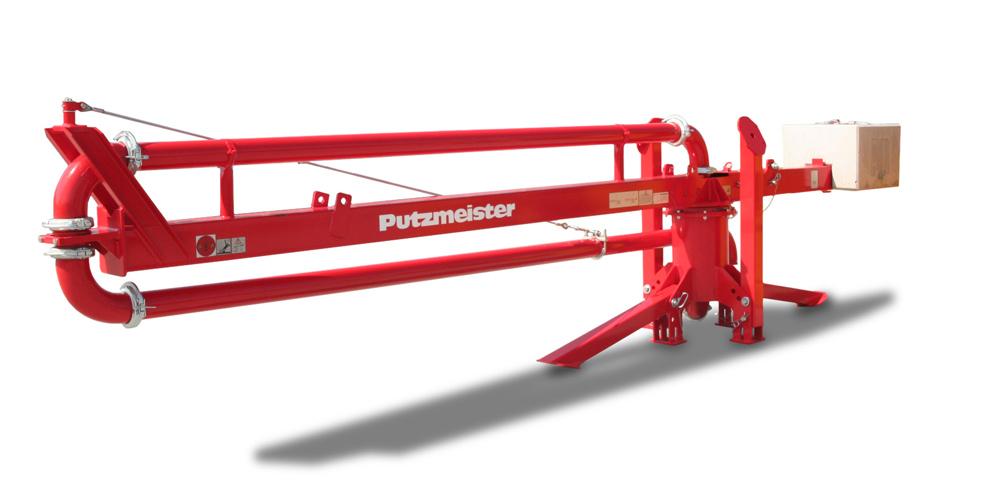

RV 13
Ideal for Projects where Placing Booms are Prohibitive, but a Large Coverage Area is Still Needed
Rotary distributors are a very cost-effective alternative to truck-mounted concrete pumps, stationary booms or delivery lines, when it comes to distributing concrete over a wide range. They can be used for concreting of large areas and floors that can no longer be reached by a truck-mounted concrete pump, and for the concreting of floors and pillars.
Key Features
- Areas of up to 598 yd² (500 m²) can be concreted from one fixed point
- Height can be increased by 1’8” (0.5 m) using bolt-on feet (optional)
Technical Details
General Information
-
Number of sections2
-
Horizontal Reach13 m
-
Placing area500 m²
-
Delivery Line (DN + Pressure)DN 125
-
Weight2600 kg
-
Length x Width x Height9100x1300x1800 mm
